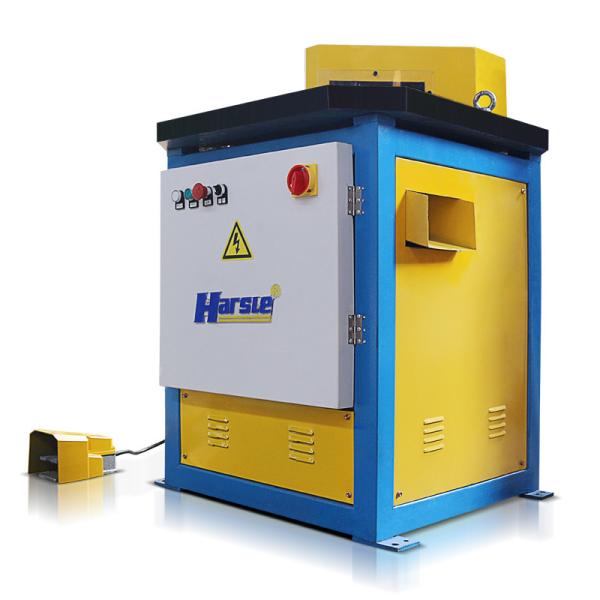

    HARSLE Heavy duty hydraulic Factory Fixed 90 degree angle notching V machine

    Ask Lasest Price
    Brand Name : HARSLE
    Model Number : QF28Y
    Certification : CE
    Price : USD 35,900-USD 52,900
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 10 sets/day
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    HARSLE Heavy duty hydraulic Factory Fixed 90 degree angle notching V machine

    QF28Y Hydraulic Angle Notching Machine

    Main features

    ♦90° fixed cutting angle for metal sheet
    ♦Machine adopts hydraulic lower-driven system to improve the cutting strength
    ♦Operation model for selection: single and inching
    ♦Adjustable angle and dimension positioning system improves cutting precision

    ♦Compact structure and easy operation

    ♦Low working noise and high cutting efficiency

    Technical Parameters

    No.Shear plate thickness(mm)Shear length(mm)Shear angle(°)Number of trips(n/min)Worktable height(mm)Motor Power(kw)Dimensions(mm)weight(kg)
    Ordinary steelstainless steellengthwidthheight
    3*2000.5-3.00.5-1.520090°≥408203810720980590
    4*2500.5-4.00.5-2.025090°≥3585049107601050680
    6*2500.5-6.00.5-3.025090°≥3585049108101050710
    8*3001.0-0.81.0-4.030090°≥309005.59508201150850
    10*3001.0-101.0-5.030090°≥259005.5102091011901120

    ● Sheet metal clamp

    ● Upper and bottom blade

    ● Oil lubrication

    ● Foot switch

    ● Dimension positioning system

    ● Discharge port

    QF28Y Fixed Angle Hydraulic Notching Machine

    QF28Y fixed angle hydraulic notching machine is used to cut 90° for metal sheet, which features high cutting speed, compact structure, easy operation.


    HARSLE is a leading and professional metalworking machine manufacturer in China, which was established in 1997 and located in the cultural ancient city of Nanjing, Jiangsu Province. After 20 years development, it has been a famous and influential modern enterprise which owns three subsidiary corporations; they are Nanjing Harsle Machine Tool Co., Ltd., Nanjing HASS CNC Machine Tool Co., Ltd., and HARSLE INDUSTRIAL LIMITED. Its sales revenue has been increased by over 100% yearly in recently years.
    HARSLE endeavors to provide high quality machine and satisfied after-sales service, our machine products including: NC & CNC Press brake, swing beam shearing machine, guillotine shearing machine, mechanical & pneumatic punching machine, hydraulic press machine, rolling machine, iron worker, laser cutting machine and steel door production line etc. They have been sold to over 100 countries and 10,000 customers all over the world in different fields.

    Company Information

    Packing&Shipping

    Our machines are covered by plastic film and fixed by steel wire inside wich will be protected well during shipping.


    Our Services

    1. Warranty period is 12 months after receiving the machine, any quick-wear part is available for free during guarantee period under proper operation, customers only need to pay for the freight of the replaced new parts.
    2. Installation and training service is optional for customers, any client can ask for this service from HASS, they should assume the air fare and accommodation for our engineer during the journey. meanwhile, the service salary for each engineer is USD 100 per day.
    3. All mails will be replied within 12 hours, all social software message will be handle in real time.
    4. Any question or concern, please do not hesitate to connect us, below is the contacts information.
