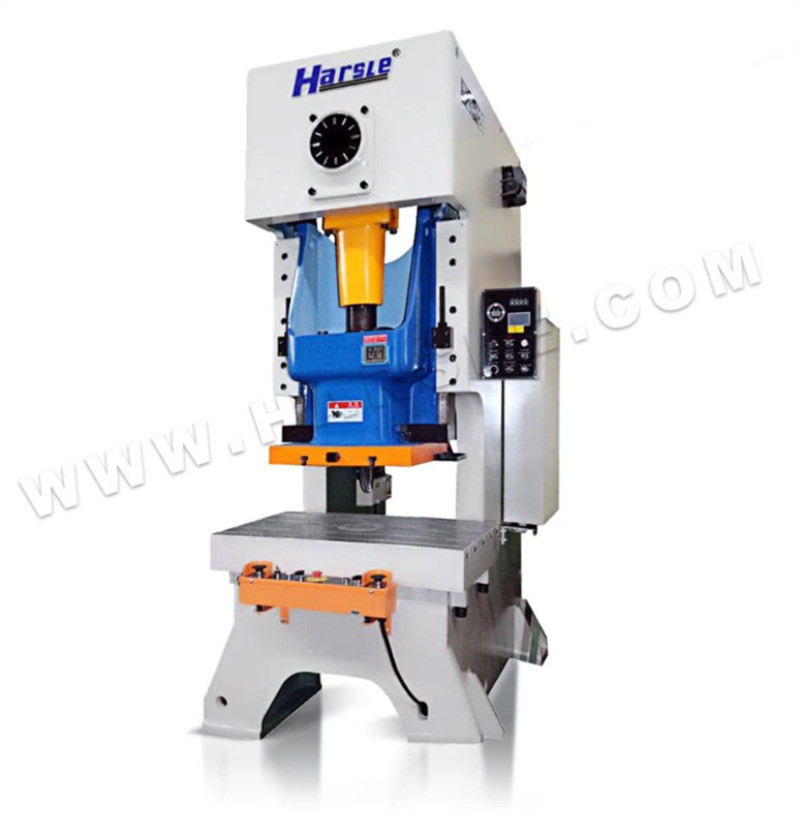

Main features
♦The machine features fine steel plates welded machine body,
tempering treatment (or vibration relief), shot blasting,
rigidness, accuracy and stability.
♦Vertical located crank shaft, compact structure; the crank shaft
undergoes grinding treatment after high frequency quenching, which
has a good smooth finish and rotates flexibly; lengthened rectangle
hex guideway with a surface of bronze plate, which has high guide
accuracy.
♦Pneumatic dual balance cylinder, balanced sliding block and punch
weight, which reduce impact and noise, eliminate the clearance
between connecting rod and sliding block, reduce the impactand wear
of the stress parts.
♦The whole machine adopt PLC centralized control. The gas circuits
adopt imported safety dualvavle, which can achieve jog, inch,
single and continuous punching.
♦The key parts such as sliding block, guideways, worktable plate,
connecting rod, and are all castings made of resin sand, which
improved the surface roughness 1-2 level, and improve the size
accuracy 2-3 level.
♦The 60T-level machines adopt the electrical control device to
adjust the die height. Fine configuration, the key parts like
pneumatic components,electrical components, sealing parts, buttons
and etc all adopt imported parts.
♦The punch press uses a single type brake. The sliding block is
equipped with a press-down type safety device that canbe pressed
down to protect the entire machine.
Parameter
| Technical Parameters | JH21-25 | JH21-45 | JH21-60 | JH21-80 | JH21-125 | JH21-160 | JH21-200 | JH21-250 | JH21-315 |
| JF21-25 | JF21-45 | JF21-60 | JF21-80 | JF21- 125 | JF21-160 | JF21-200 |
| Nominal force | 250KN | 450KN | 600KN | 800KN | 1250KN | 1600KN | 2000KN | 2500KN | 3150KN |
| Stroke of nominal force | 3mm | 4mm | 4mm | 5mm | 5mm | 6mm | 6mm | 6mm | 7mm |
| Stroke of sliding block | 80mm | 120mm | 140mm | 160mm | 180mm | 200mm | 180mm | 250mm | 250mm |
| Number of strokes | 100mm | 80mm | 70mm | 60mm | 50mm | 45mm | 35mm | 40mm | 30mm |
| Maximun height for die loading | 250mm | 270mm | 300mm | 320mm | 350mm | 400mm | 390mm | 500mm | 500mm |
| Adjustment range for die loading height | 50mm | 60mm | 70mm | 80mm | 90mm | 100mm | 110mm | 120mm | 120mm |
| Distance from slide block centre to the frame | 210mm | 225mm | 270mm | 310mm | 350mm | 390mm | 390mm | 450mm | 450mm |
| Space between columns | 450mm | 500mm | 560mm | 620mm | 660mm | 720mm | 870mm | 980mm | 980mm |
| Bottom size of sliding bolck : | | | | | | | | | |
| Left-right | 360mm | 410mm | 480mm | 540mm | 620mm | 700mm | 800mm | 950mm | 950mm |
| Front-back | 250mm | 340mm | 400mm | 460mm | 520mm | 580mm | 600mm | 700mm | 700mm |
| Hole size for die handle | | | | | | | | | |
| Diamter | 40mm | 50mm | 50mm | | | | | | |
Product details
| ►Wet Friction Clutch---Brake |
| HARSLE(China) |
 |
| ►Pressure Switch |
| ARK(South Korean) |
|
| ►Inverter(Optional) |
| SINEE(China) |
 |
| ►Double switch |
| IDEC(Japan) |
 |
| ►Overload protector |
| SHOWA(Japan) |
 |
| ►Digital Controller |
| KINCO(China) |
 |
| ►Electrical Components |
| Schneider(France) |
 |

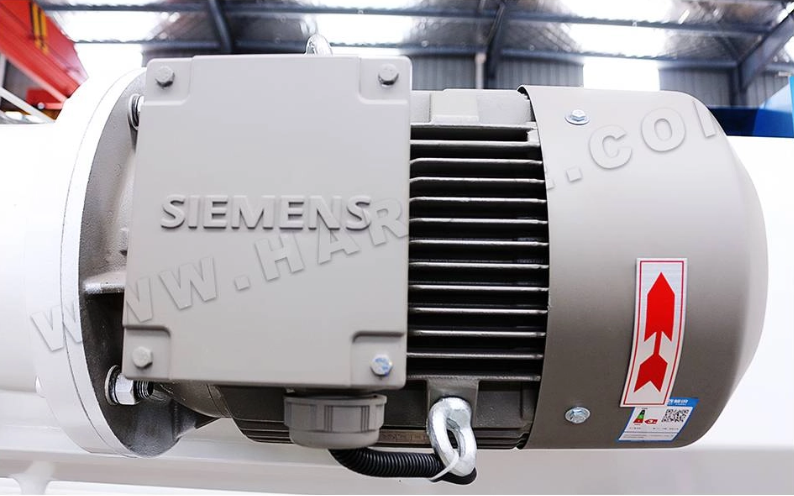

| ►Main motor |
| SIEMENS(Germany) |
 |
| ►Pressure Deducing Valve |
| DPC(Taiwan) |
 |
