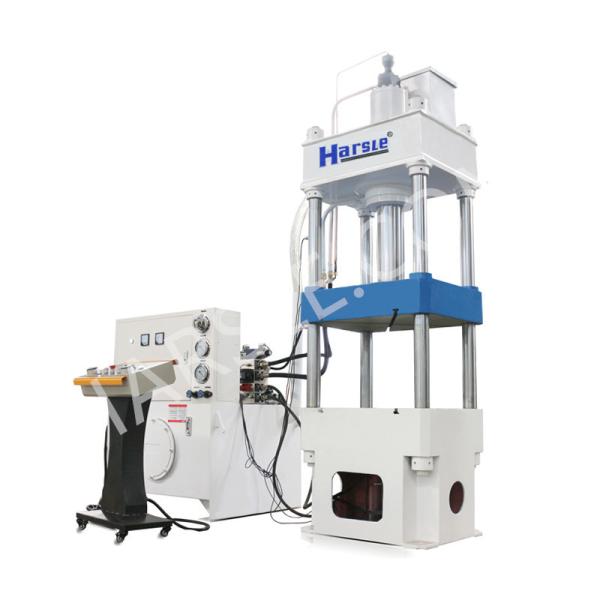

Main features
►Computer optimized design, 3-beam, 4-column structure, simple but
with high performance price ratio.
►Cartridge valve integral unit equipped for hydraulic control
system, reliable, durable and less hydraulic shock, with shorter
connection pipeline and fewer releases points.
►Independent electrical control, reliable, audio-visual and
convenient for maintenance.
►Centralized button control system, with adjustment, hand and
semi-auto operation modes at operator's choice.
►Fixed stroke forming process or fixed pressure forming process
selected through control panel, with pressure hold and time delay
functions.
►The operating force, no-load traveling and, low-speed movement and
travel range can be adjusted subject to technological requirements.
The frame is entirely welded with steel plates and treated to
relive stress by tempering.
Technical Parameters
| Model No. | Norminal pressure | Liquid rated working pressure (Mpa) | Max ram stroke (mm) | Ram down speed (mm/s) | Ram feeding speed (mm/s) | Ram return speed (mm/s) | Work table size (mm) | Height of work table to the ground (mm) | Machine overall size | Motor power (kW) |
|
| Y32-500B | 5000 | 25 | 900 | 100 | ≤10 | 80 | 1400x1400 | 500 | 4100x3500x5100 | 45 |
| Y32-500D | 5000 | 25 | 900 | 100 | ≤10 | 80 | 2200x1400 | 500 | 4770x3570x5740 | 45 |
| Y32-500E | 5000 | 25 | 900 | 100 | ≤10 | 80 | 2200x1400 | 500 | 4810x3570x5740 | 45 |
| Y32-600B | 6300 | 25 | 1000 | 100 | ≤10 | 60 | 1600x1600 | 500 | 4400x3700x5745 | 45 |
| Y32-600D | 6300 | 25 | 1000 | 100 | 4~12 | 50 | 2600x1600 | 500 | 5170x3770x6195 | 45 |
| Y32-800 | 8000 | 25 | 1250 | 200 | 13 | 80~50 | 2000x1600 | 500 | 5420x3750x6290 | 135 |
| Y32-800A | 8000 | 25 | 1500 | 150 | 0.5~1 | 15 | 2800x2800 | 680 | 5210x6225x5466 | 21.5 |
| Y32-800C | 8000 | 25 | 900 | 150 | 6~14 | 90 | 1500x1500 | 0 | 4850x2980x5600 | 71 |
| Y32-800D | 8000 | 25 | 1100 | 200 | 10~25 | 180 | 3200x2400 | 300 | 7314x3540x5895 | 97 |
Product details
 |  |
Cylinaer ►Polished and chromed with high rigidity treatment. | Main Motor ►Siemens brand from Germany |
 |  |
Pressure Gauge ►Detect main cylinder and ejection cylinder pressure, adjust system
hydraulic pressure. | Hydraulic Valve ►Cartridge valve integral unit equipped for hydraulic control
system, reliable, durable and less hydraulic shock, with shorter
connection pipline and fewer release points. |
 |  |
Hydraulic Oil Tank ►Clean the oil tank regularly easily thanks to the dismountable
design | Electric Parts ►Schneider brand from Fran |
HARSLE is a leading and professional metalworking machine manufacturer in
China, which was established in
1997 and located in the cultural ancient city of Nanjing, Jiangsu
Province. After 20 years development, it has been
a famous and influential modern enterprise which owns three subsidiary corporations; they are Nanjing Harsle
Machine Tool Co., Ltd., Nanjing HASS CNC Machine Tool Co., Ltd., and HARSLE INDUSTRIAL LIMITED. Its
sales
revenue has been increased by over 100% yearly in recently years.
HARSLE endeavors to provide high quality machine and satisfied
after-sales service, our machine products
including: NC & CNC Press brake, swing beam shearing machine,
guillotine shearing machine, mechanical &
pneumatic punching machine, hydraulic press machine, rolling machine, iron worker, laser cutting machine and
steel door production line etc. They have been sold to over 100 countries and 10,000 customers all over
the world
in different fields.
Company Information
Packing&Shipping
Our machines are covered by plastic film and fixed by steel wire
inside wich will be protected well during shipping.
Our Services
- Warranty period is 12 months after receiving the machine, any
quick-wear part is available
- for free during guarantee period under proper operation, customers
only need to pay for the
- freight of the replaced new parts.
- Installation and training service is optional for customers, any
client can ask for this service
- from Harsle, they should assume the air fare and accommodation for
our engineer during the
- journey. meanwhile, the service salary for each engineer is USD 100
per day.
- All mails will be replied within 12 hours, all social software
message will be handle in real time.
- Any question or concern, please do not hesitate to connect us,
below is the contacts information.
